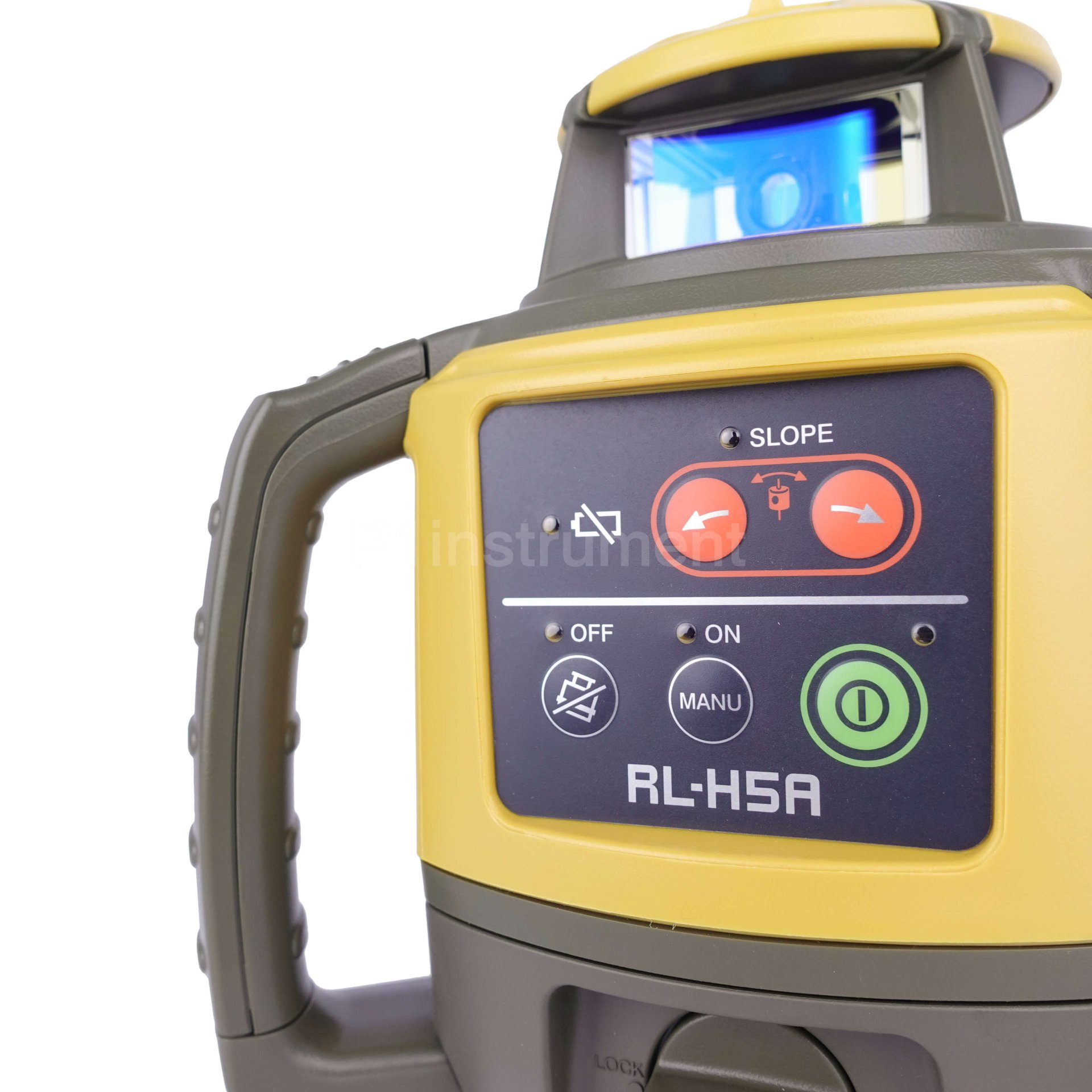

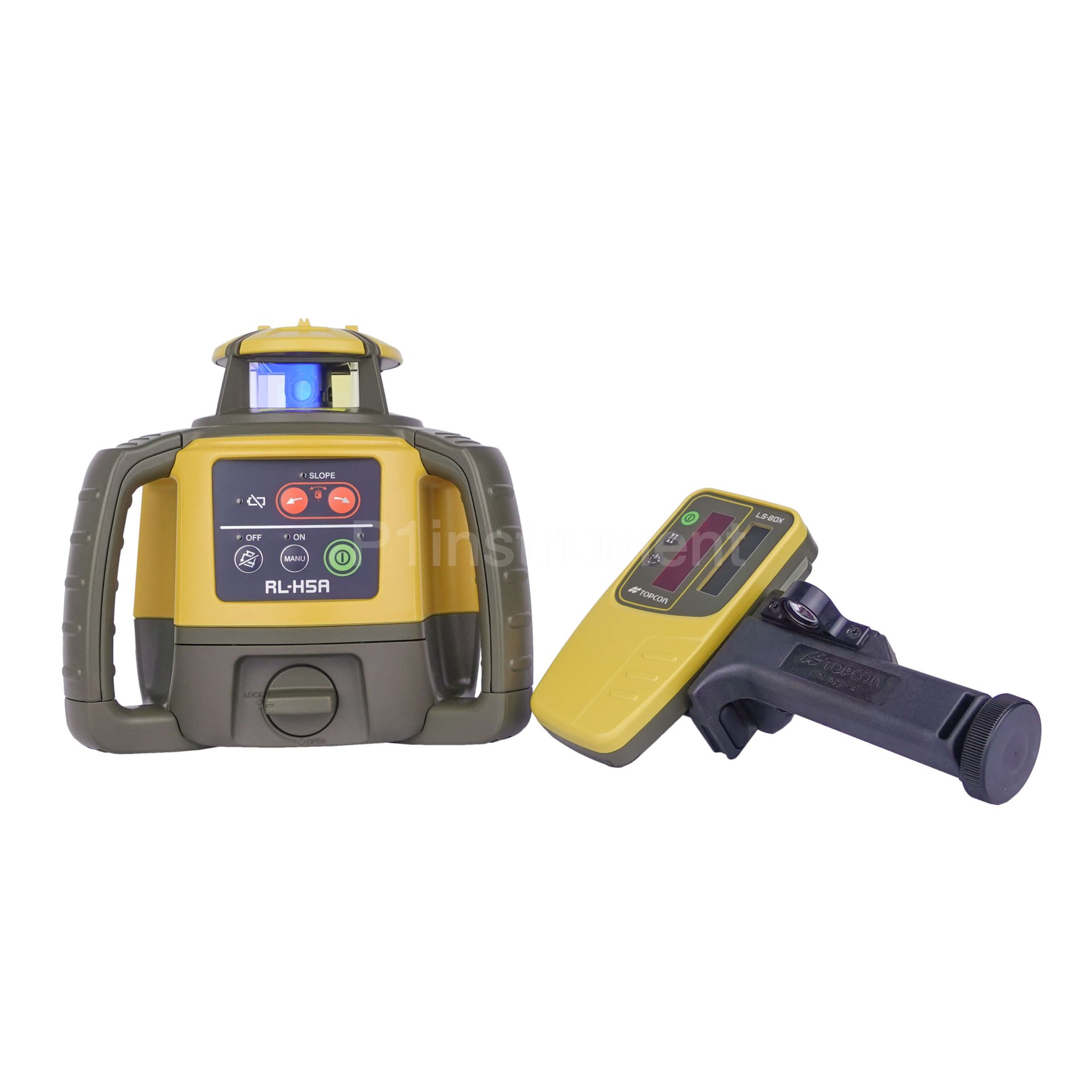

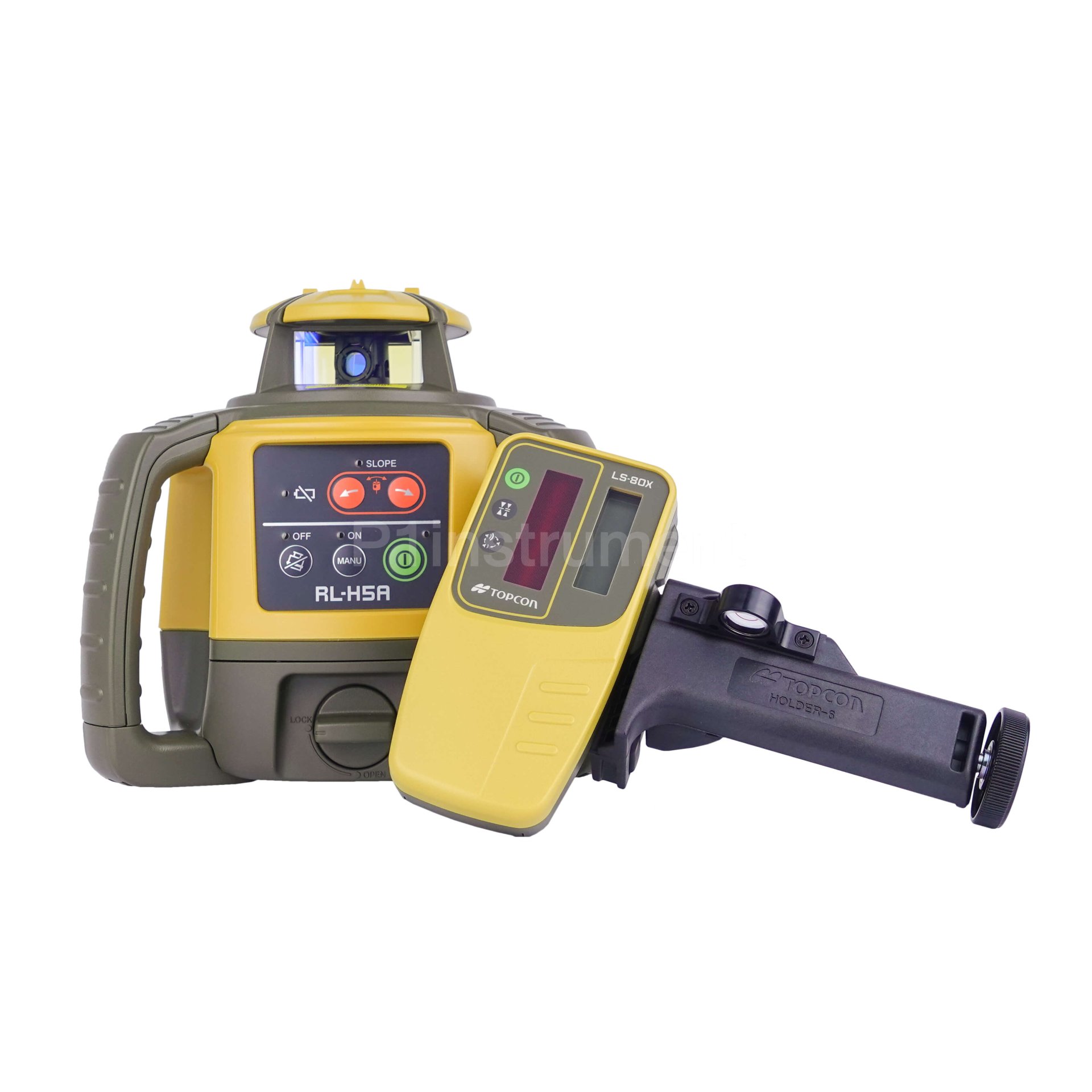

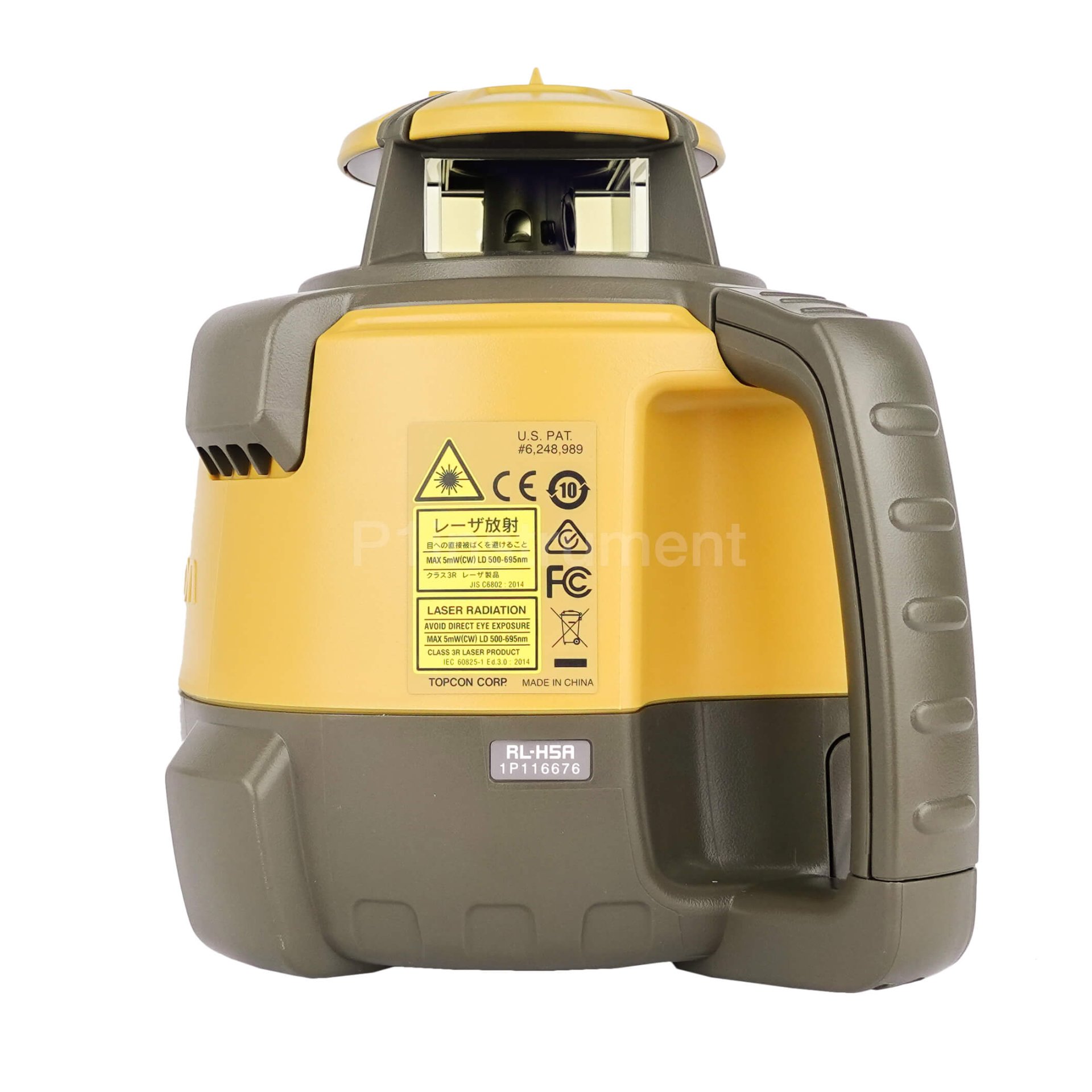

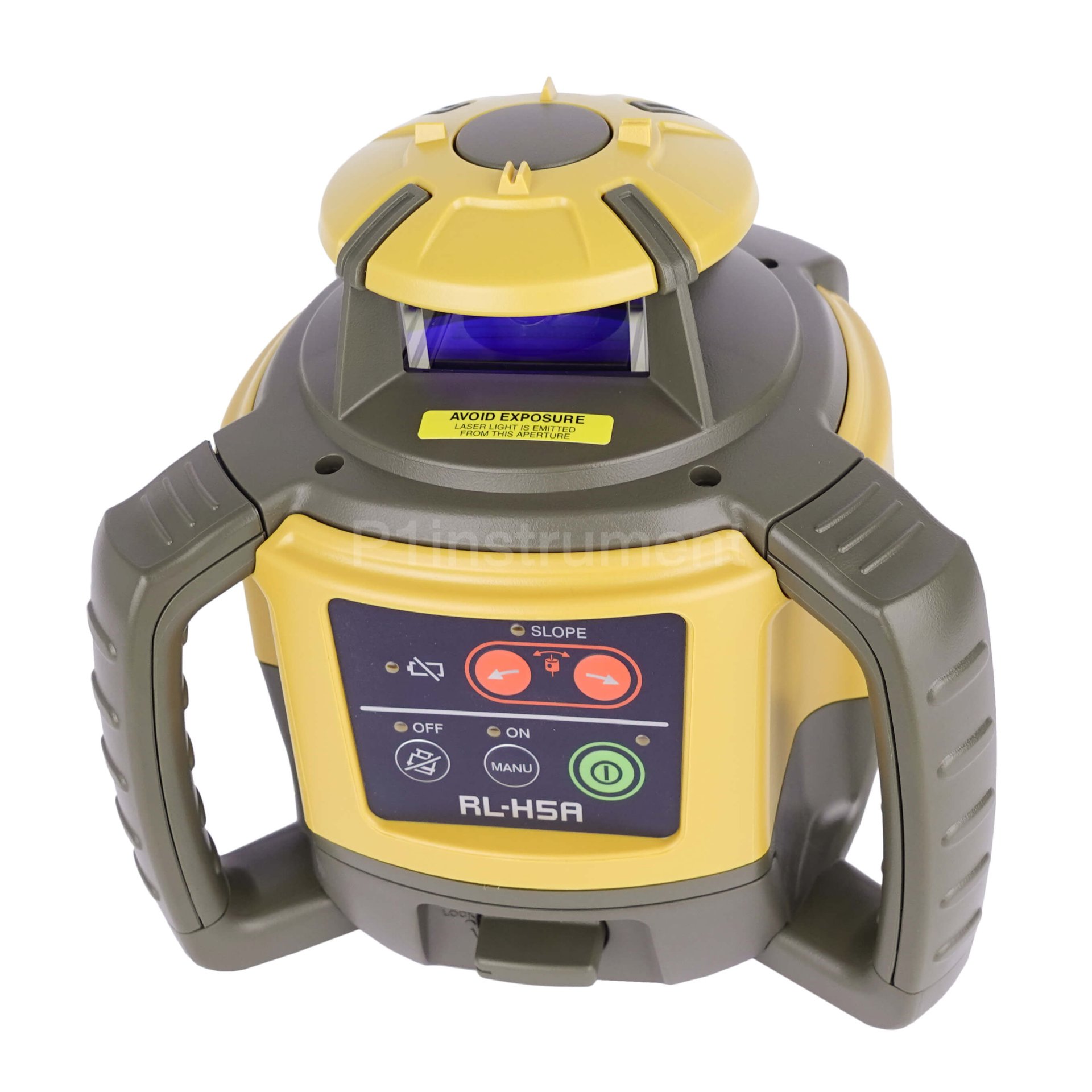

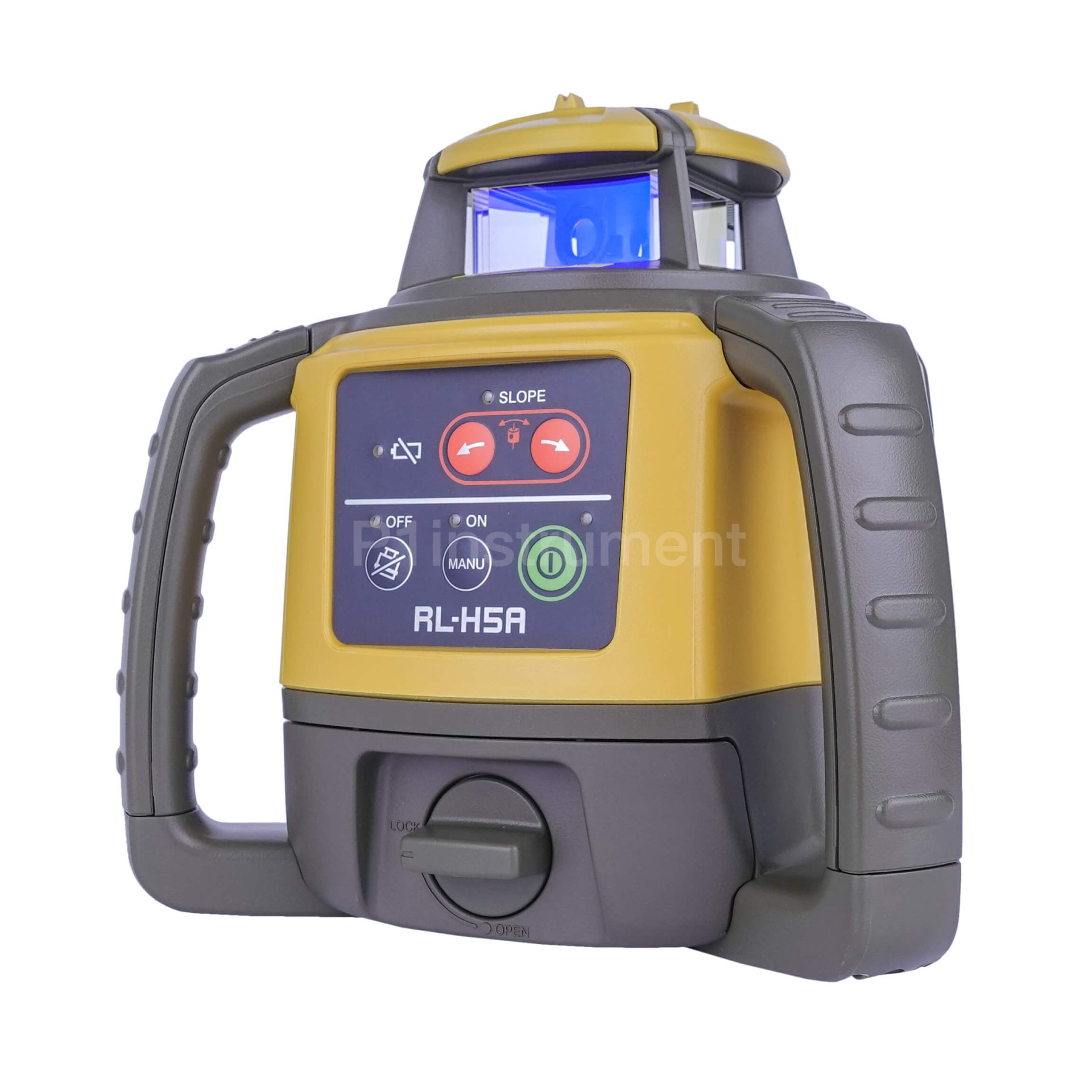

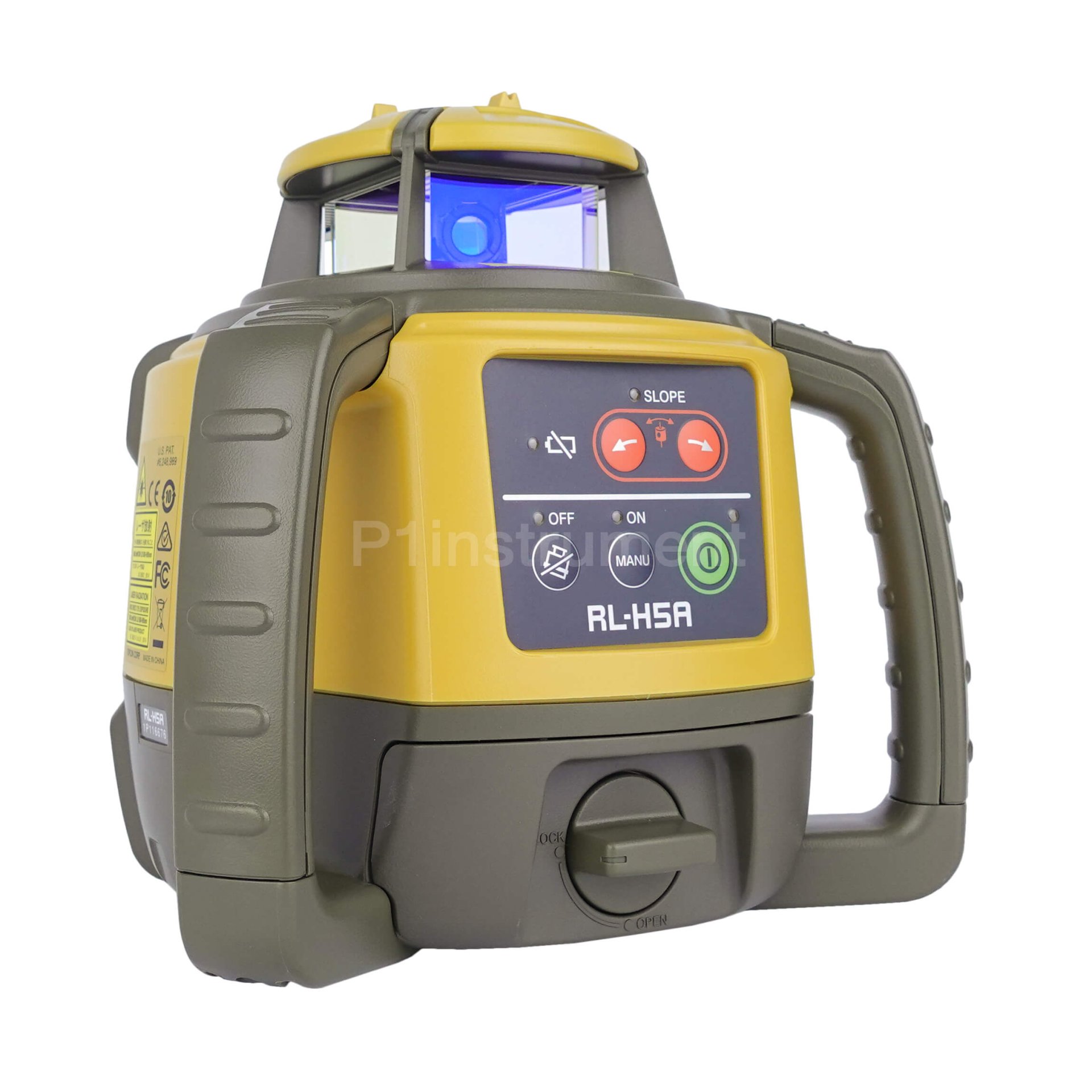

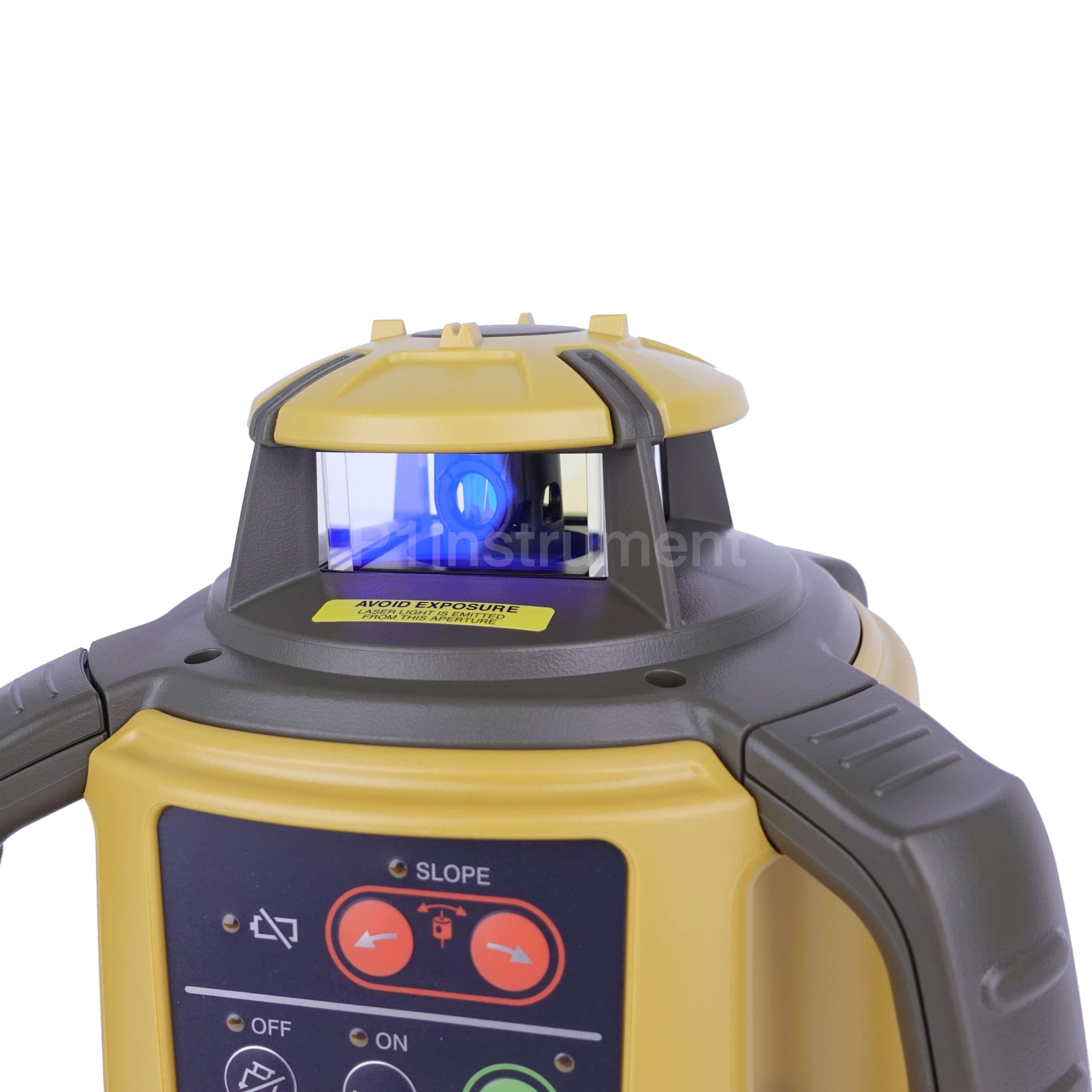

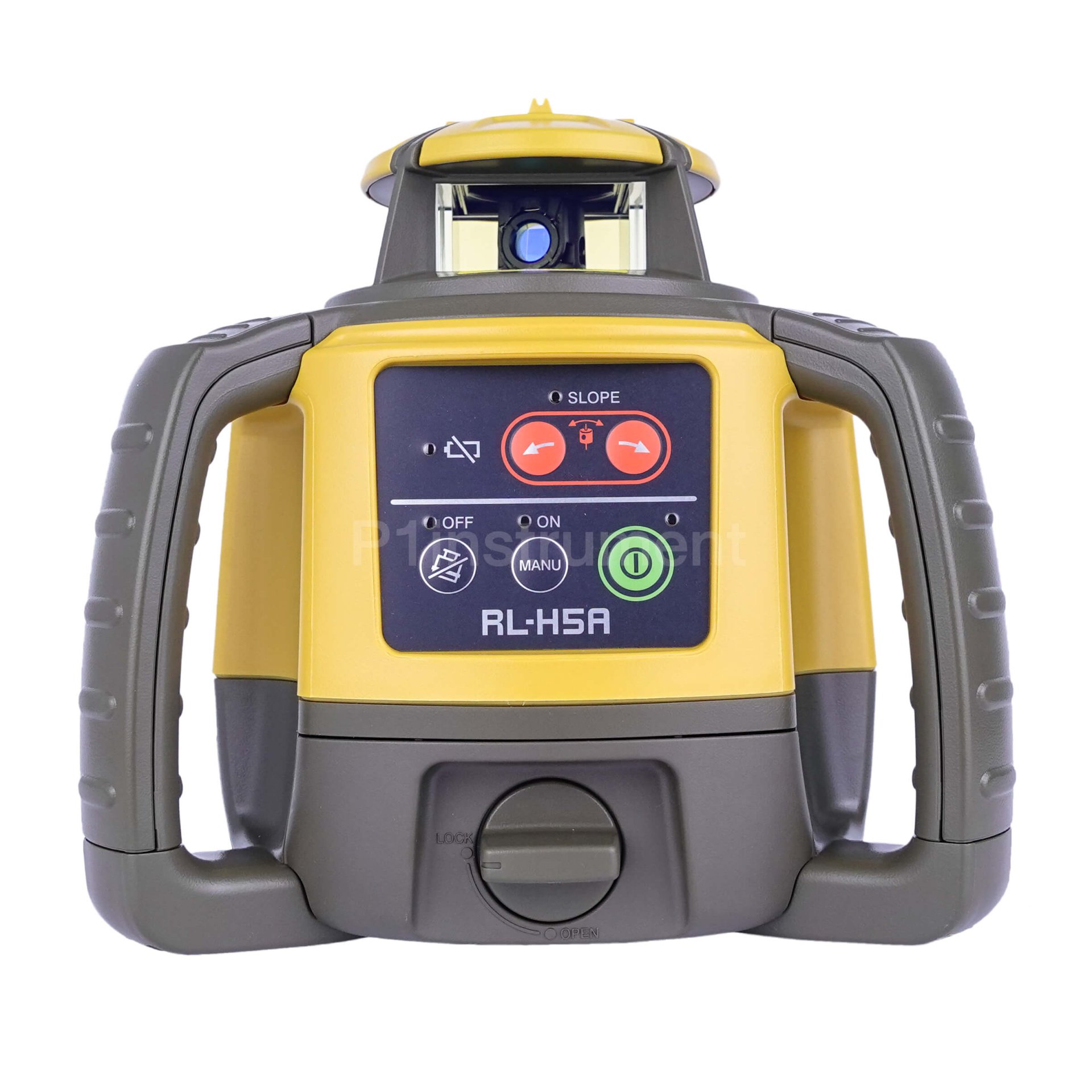

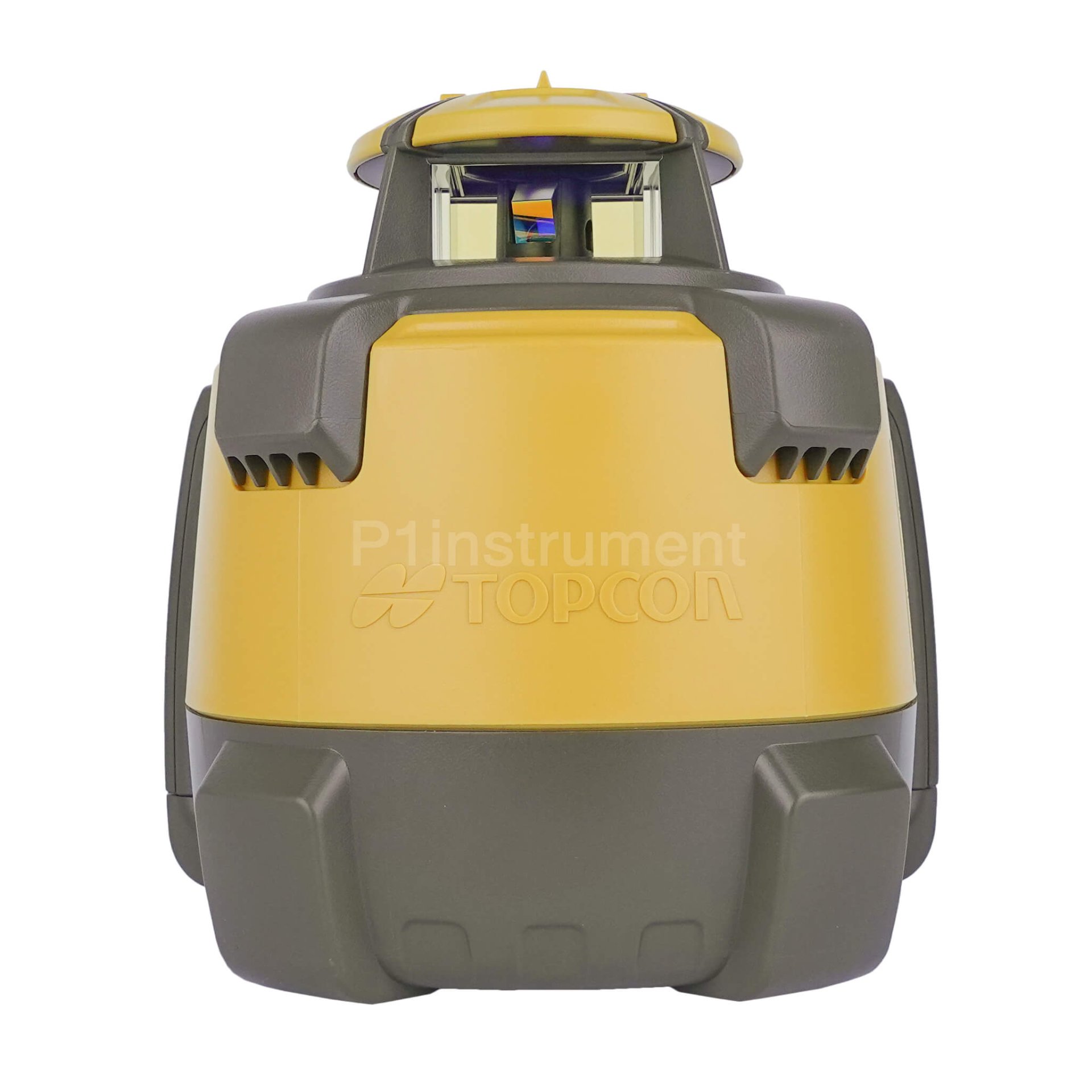

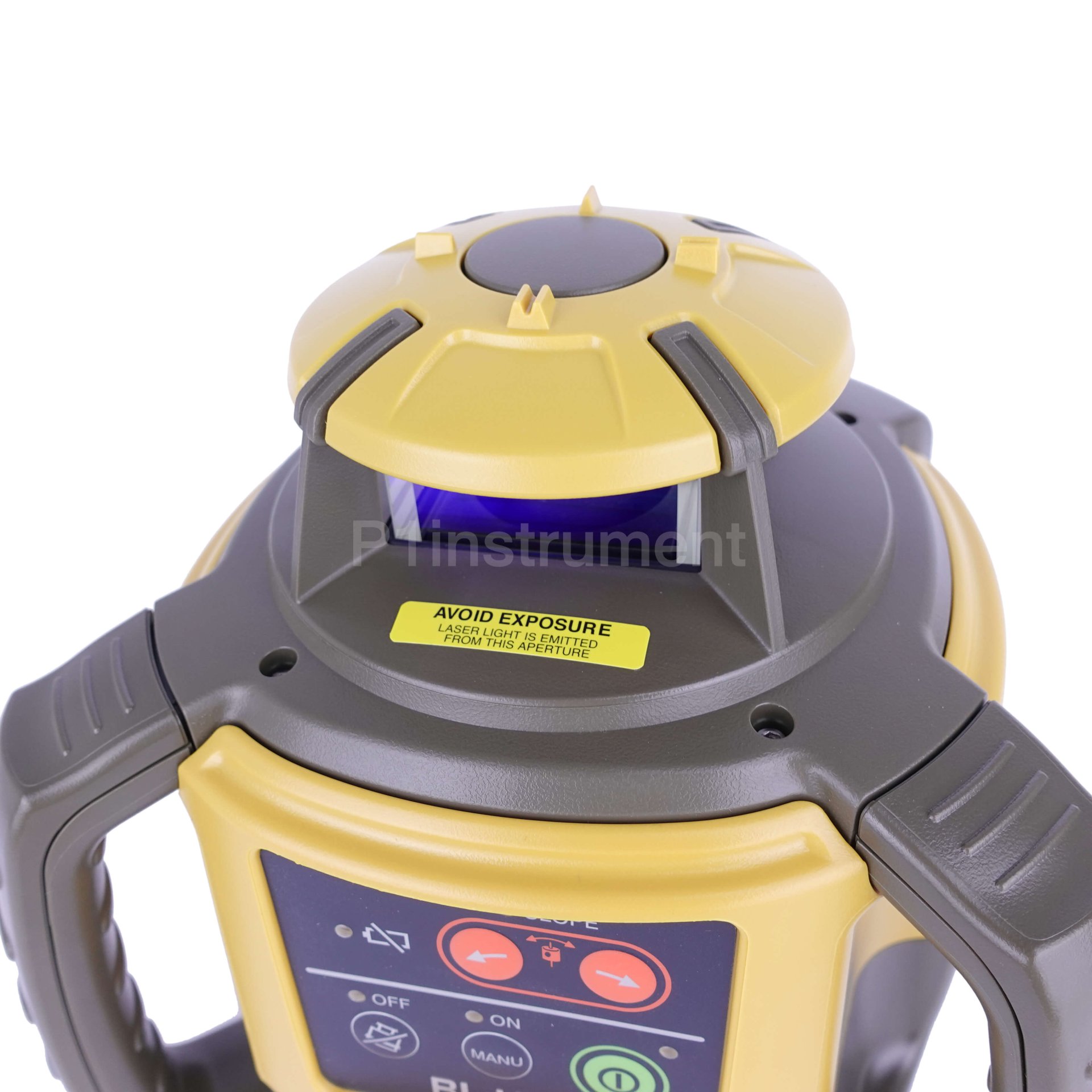

เลเซอร์แบบหมุนได้ TOPCON RL-H5A
หมวดหมู่ : เครื่องมือวัดระยะ,GPS , เลเซอร์ Bosch , TOPCON ,
แบรนด์ : TOPCON
Share
SPECIFICATIONS
| RL-H5A | |
| Laser source | : Laser diode (Visible, 635 nm) CDRH (FDA) Class Illa, IEC Class 3R |
| Laser output | : 2.4 mW |
| Self-leveling range | : +5° |
| Accuracy | : +10" |
| Manual slope settable range | : +5° (When the instrument is installed on the 0° surface) The slope range is increased or decreased according to the tilt of the surface on which the instrument is installed. |
| Rotational speeds | : 600 r.p.m |
| Operating range | : Diameter Approx. 2 to 800 m (When using LS-80X) |
| Power source/Operating time at 20°C (68°F) | : 4xD size dry batteries (alkaline) /100 hours Ni-MH battery pack BT-79Q (7000mAh)/60 hours |
| Charging time | : about 13 hours (Using with AD-17B/C/D/E) |
| Charging temperature range | : 10 to 40°C (50 to 104°F) |
| Dust and water resistance | : IP66 (IEC60529: 2001) |
| Operating temperature range | : -20 to 50°C (-4 to 122°F) |
| Storage temperature range | : -30 to 60°C (-22 to 140°F) |
| Remote warning display | : RL-H5A height alert warning (Warning is displayed on the indicator of LS-80X.) : RL-H5A battery warning (Warning is displayed on the indicator of LS-80X.) |
| Size | : 172 (L) x 211 (W) x 205 (H) mm |
| Laser beam height | : 171.8 mm (Height from the instrument's bottom surface to the center point of laser beam) |
| Weight Dry battery type | : 2.3 kg (5.1 lbs) (with dry batteries) |
| Weight Rechargeable battery type | : 2.5 kg (5.5 lbs) (with BT-79Q) |
| Tripod screw | : 5"/8X11 threads for surveying instrument |
| BT-79Q (Ni-MH rechargeable battery) | |
| Nominal voltage | : 4.8V |
| Capacity | : 7,000mAh |
| Size | : 104(W) x 127(D) x 37(H) mm |
| Weight | : 690 g |
| AD-17B/C/D/E | |
| Input voltage | : 100 to 240 V AC, 50 to 60 Hz, 0.6 A |
| Output voltage | : DC 9 V/2.0 MAX 18 W |
| Charging time | : about 13 hours |
| Charging temperature range | : 10 to 40°C (50 to 104°F) |
| Storage temperature range | : -20 to 70°C (-4 to 158°F) |
| Size (excluding cable)/ Weight | |
| AD-17B | : 45(W) x 83(D) x 54(H) mm /133 g |
| AD-17C | : 45(W) x 83(D) x 70(H) mm /137 g |
| AD-17D | : 45(W) x 83(D) x 59(H) mm /135 g |
| AD-17E | : 45(W) x 83(D) x 62(H) mm /140 g |

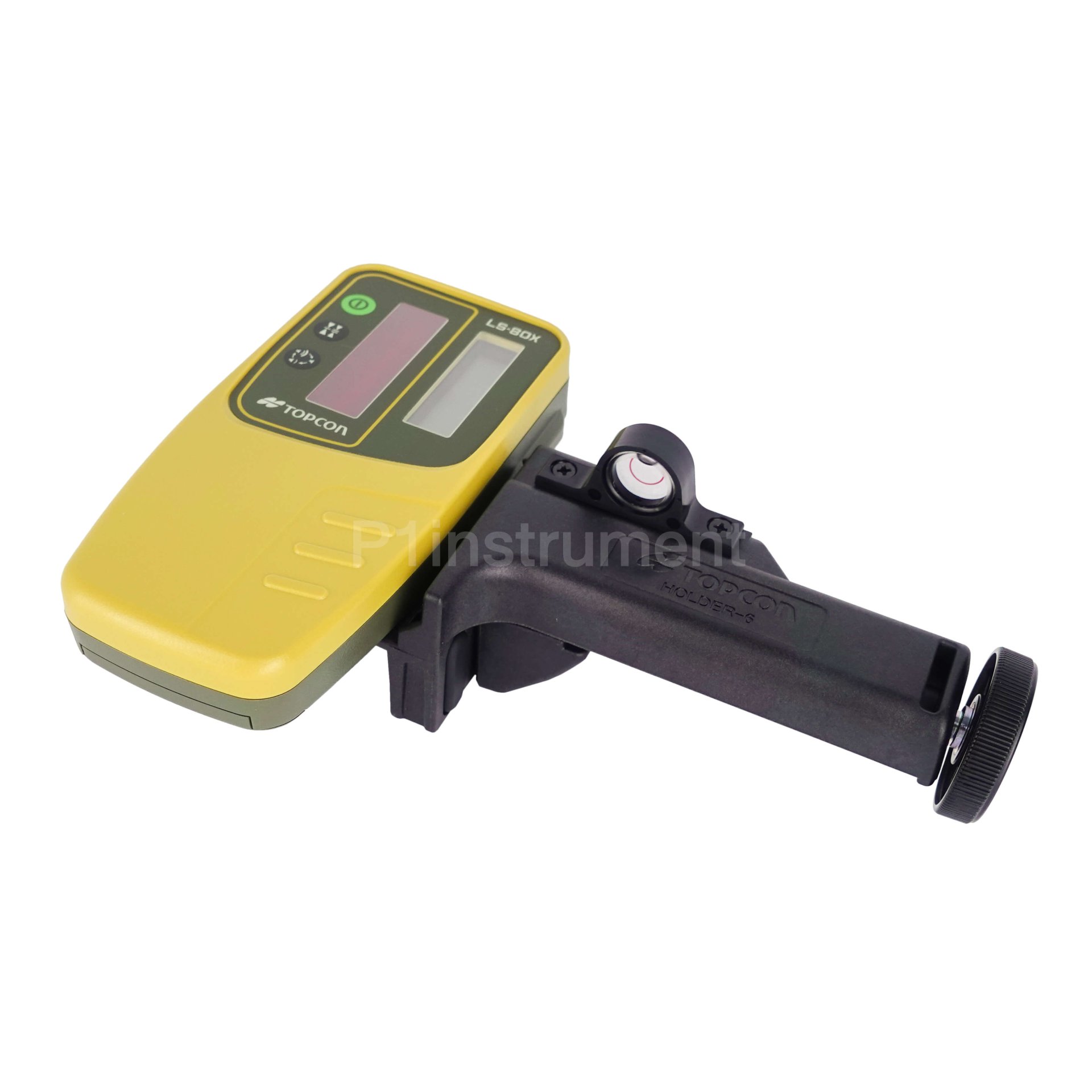

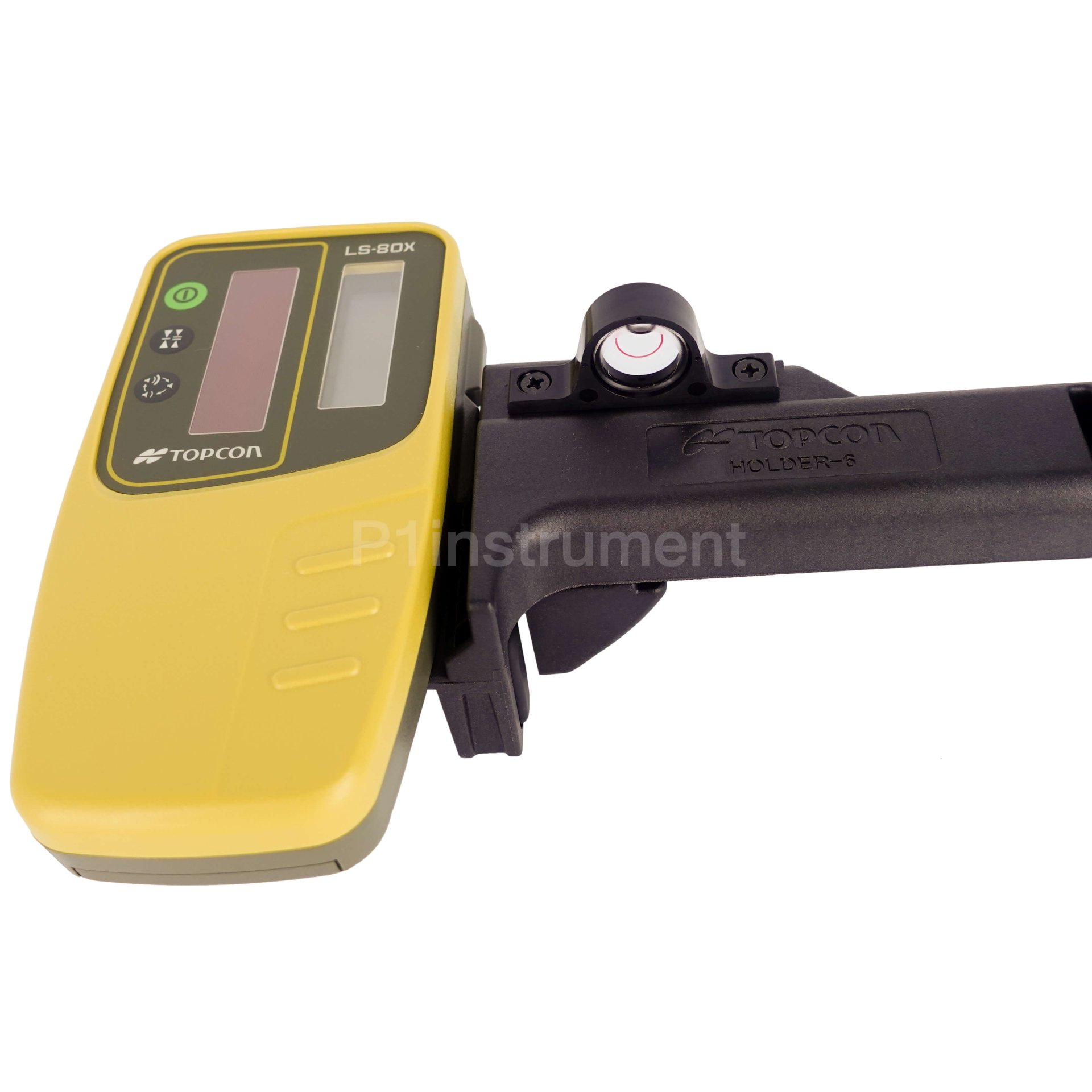

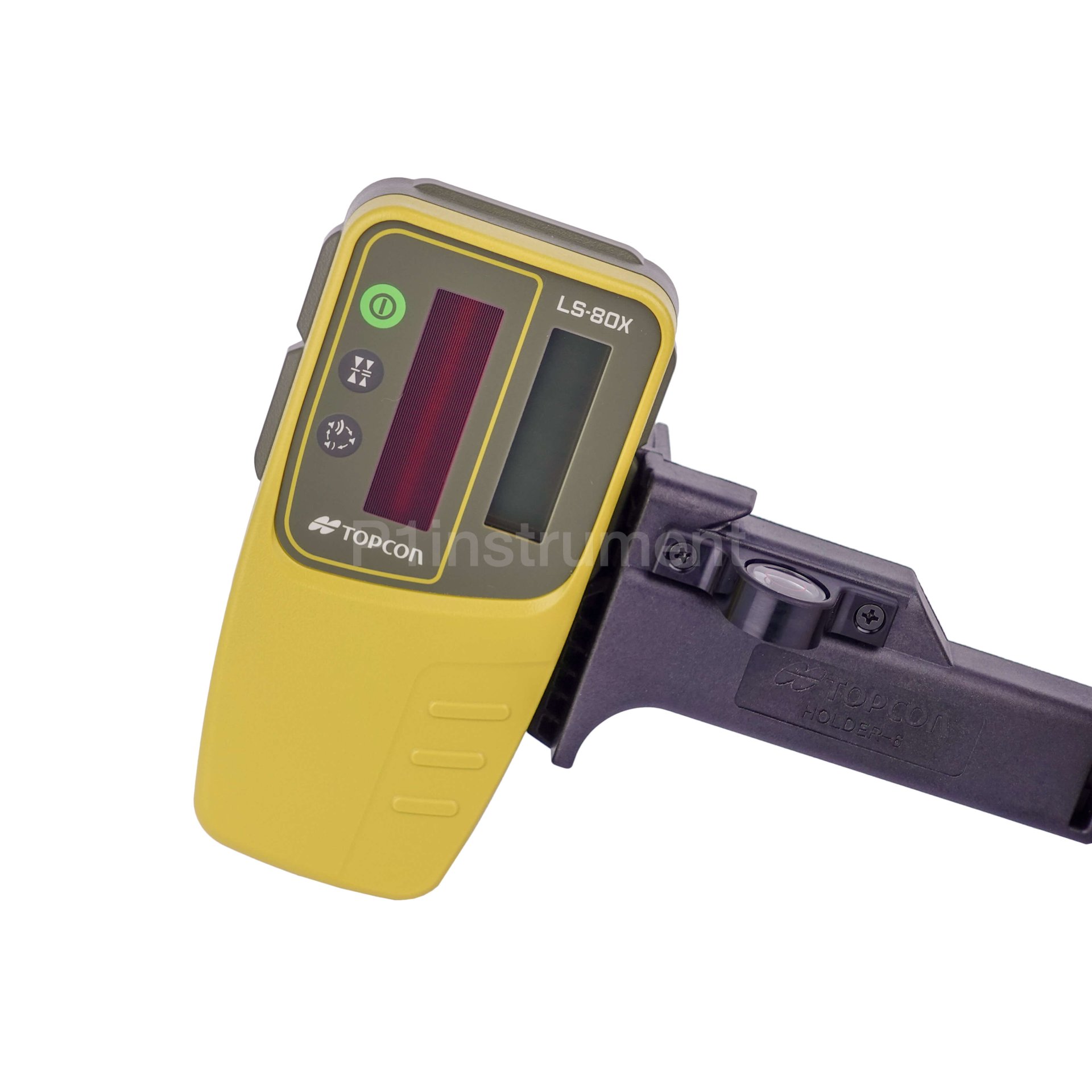

| LS-80X | |
| Beam detection range | : 50 mm (2.0 in) |
| Beam detection precision | : High precision: ±1 mm (±0.04 in) Normal precision: ±2 mm (±0.08 in) |
| Beam detection indication | : Liquid crystal (both sides) and buzzer |
| Power source | : 2xAA size dry batteries (alkaline) |
| Operating time (at 20°C) | : Approx. 120 hours (alkaline dry batteries) |
| The time for auto-cut off | : Approx. 30 minutes without beam detection |
| Dust and water resistance | : IP66 (IEC60529: 2001) |
| Operating temperature range | : -20 to 50°C (-4 to 122°F) |
| Storage temperature range | : -30 to 60°C (-22 to 140°F) |
| Size | : 146(L)x76(W)x25(H) mm |
| Weight | : Approx. 200 g (0.44 lbs) (with dry batteries) |
